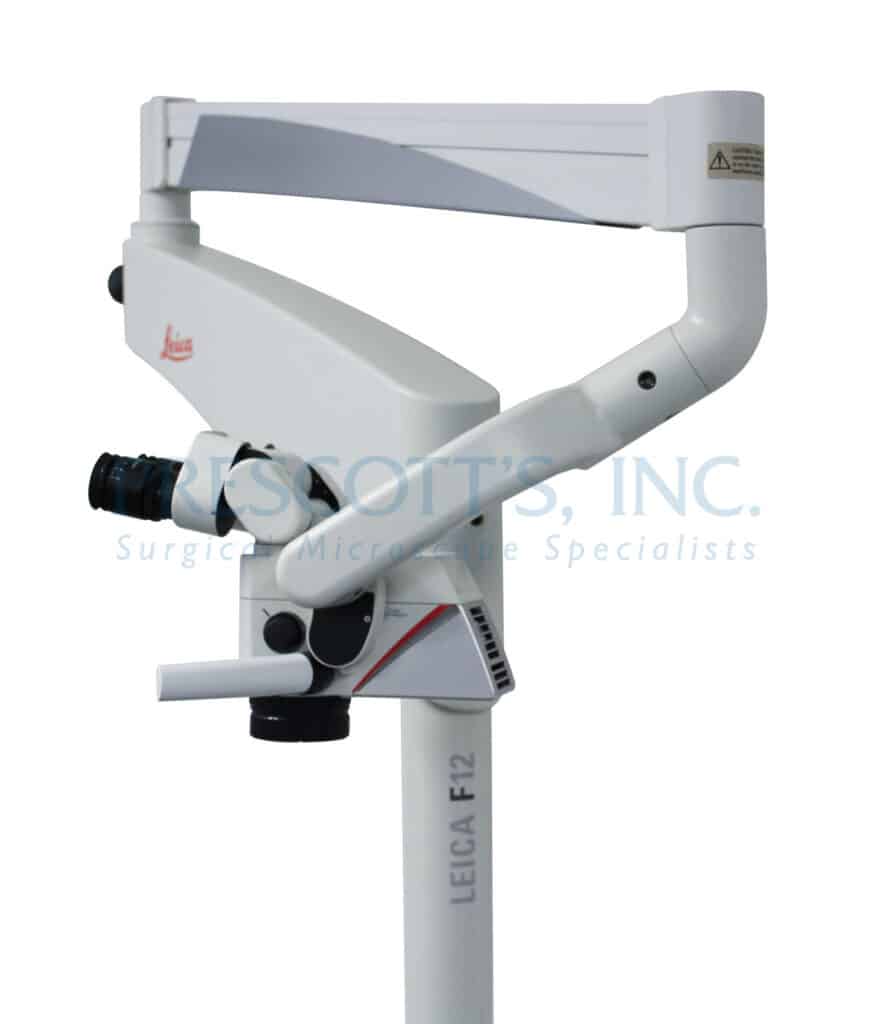

Leica M320 F12 Microscope

The Leica M320 F12 is a premium, compact microscope explicitly designed for modern dental medicine. It revolutionizes dental workflows by providing crystal-clear visualization and ergonomic comfort at an affordable value. Designed to provide optimal visibility for restorative dentistry, endodontics, implantology, and periodontics, the M320 F12 features advanced apochromatic optics and was the world’s first configuration with LED illumination, delivering crisp, bright images with amazing depth of field.

Key Features and Benefits

• Premium Apochromatic Optics: Delivers crystal-clear images with enhanced detail, allowing dentists to see more than ever before for precise surgery and procedures.
• Integrated LED Illumination: Features a dual-LED system that provides shadow-free, daylight-temperature illumination for high-fidelity image colors without start-up delay. The LEDs have a lifetime of 60,000 hours, significantly reducing cost of ownership by eliminating bulb and fiber optic cable replacements.
• High-Definition Imaging: Optional integrated HD video and photo camera (1080p video, 3MP still photos) allows for easy documentation and sharing of cases on an internal SD memory card.
• Ergonomic Design: Offers customizable positioning with a wide range of binocular tubes, including an inclinable 0-180° tube, and accessories like the ErgoWedge™ to suit individual working preferences and maximize comfort.
• Hygienic and Streamlined: The microscope features a virtually jointless design with internally routed cables for easy cleaning. Surfaces are protected with AgProtect™, an antimicrobial nano-silver coating that reduces pathogens.

Specifications

• Magnification: Manual APOchromatic 5-step magnification changer (6.4x, 10x, 16x, 25x, 40x).
• Focusing: Objectives with fixed focal lengths (f=100mm to f=400mm) and fine focusing lenses (f=200, 250, 300 mm).
• Illumination: 2 LEDs with 60,000-hour service life; UV and IR-free.
• Binocular Tubes: Options include fixed angle, 180° tiltable tube, and variable angle tubes.
• Eyepieces: 10x21B, 12.5x17B, 8.33x22B, 10x21B with reticule.
• Filter: Built-in orange filter (OG530) to prevent premature curing of composites.
• Documentation: Optional integrated HD camera (720p/1080p video, 3MP photo), SD card storage (up to 32GB), and IR remote control.
• Stand Options: Floor stand (FP12), Wall mount (W12), Ceiling mount (C12).

Clinical Applications

The Leica M320 F12 is engineered for a variety of dental specialties:

• Restorative Dentistry: Provides precise visualization for finishing and polishing.
• Endodontics: Offers deep depth of field and bright illumination for locating canals.
• Implantology & Periodontics: Enhances detail recognition for complex surgical interventions.

Why Choose the Leica M320 F12?

The Leica M320 F12 stands out by combining legendary Leica optics with cutting-edge LED technology and ergonomic design. It is built to support the specific needs of dentists, offering a “hands-on” design that is elegant, easy to maintain, and seamlessly integrated into the modern dental practice. With its focus on high-quality imaging, hygiene, and maneuverability, it is a valuable investment for improving patient outcomes and workflow efficiency.
