Panasonic GP-UH532 4K Video Camera

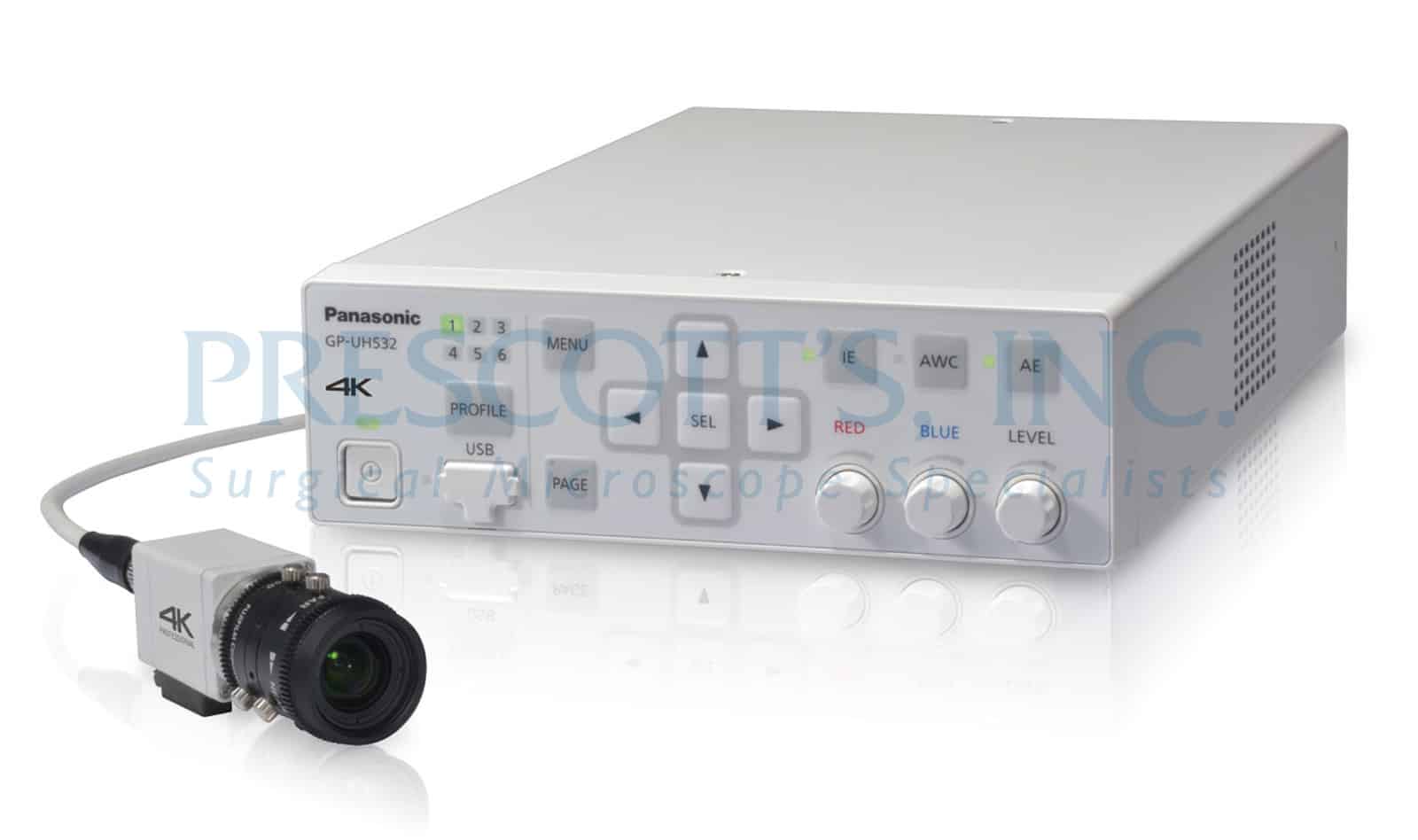

The Panasonic GP-UH532 is a 4K Ultra HD 3MOS camera system specifically engineered for medical and surgical environments. Leveraging a sophisticated 3-sensor prism technology, it delivers four times the resolution of Full HD, achieving 1600 TV lines of horizontal resolution for unprecedented detail and clarity. The system’s ultra-compact camera head seamlessly integrates with surgical microscopes, providing faithful color reproduction and smooth, realistic imagery crucial for high-precision procedures.

Key Features and Benefits

• Superior 4K Resolution: Supports 3840 x 2160 resolution at 59.94p/50p, delivering realistic, high-definition video with smooth motion.
• 3MOS Sensor Technology: Utilizes three separate sensors (Red, Green, Blue) for accurate color separation and reproduction, ensuring vital tissue details are clearly visible.
• Simultaneous 4K and Full HD Output: Capable of outputting 4K and Full HD signals simultaneously, allowing compatibility with existing Full HD monitors while recording in 4K.
• Image Enhancement Functions:
  • Wide Dynamic Range (WDR): Brightens dark areas while controlling overexposure.
  • Dark Area Correction: Adaptive black stretch functionality enhances visibility in shadowed regions.
  • Smoke Correction: Clears white blur caused by surgical smoke.
  • Fluorescent Image Mode: Optimized settings for capturing fluorescent images during specialized procedures.
• User Profile Function: Includes six pre-set profiles for various applications (e.g., Cataract, Retina, Neurological, ENT) and allows for custom settings to be saved via USB.
• Medical-Grade Design: Features a chemical-resistant coating for easy cleaning and complies with IEC 60601-1 and IEC 60601-1-2 medical safety standards.

Specifications

• Image Sensor: 1/3″ type 3MOS.
• Resolution: 3840 x 2160 (4K).
• Horizontal Resolution: 1600 TV lines at center.

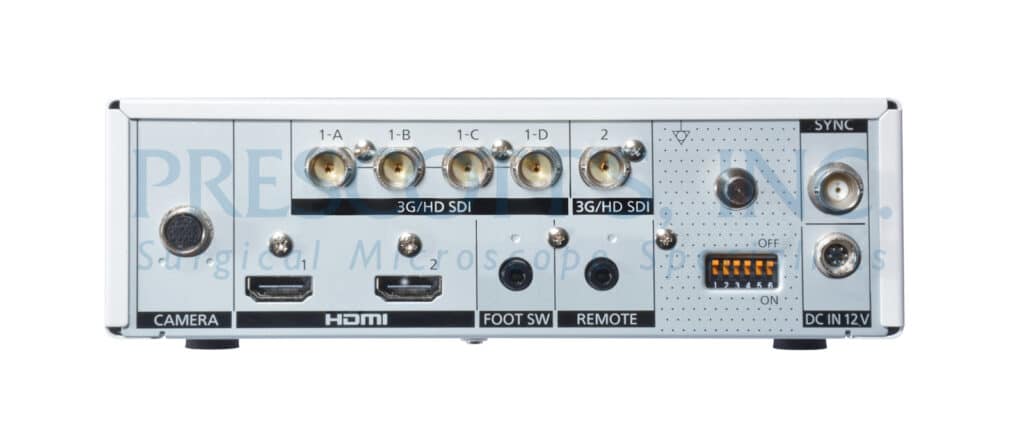

• Video Outputs:
  • HDMI x 2 (4K/Full HD).
  • SDI x 5 (4 for 4K, 1 for Full HD).

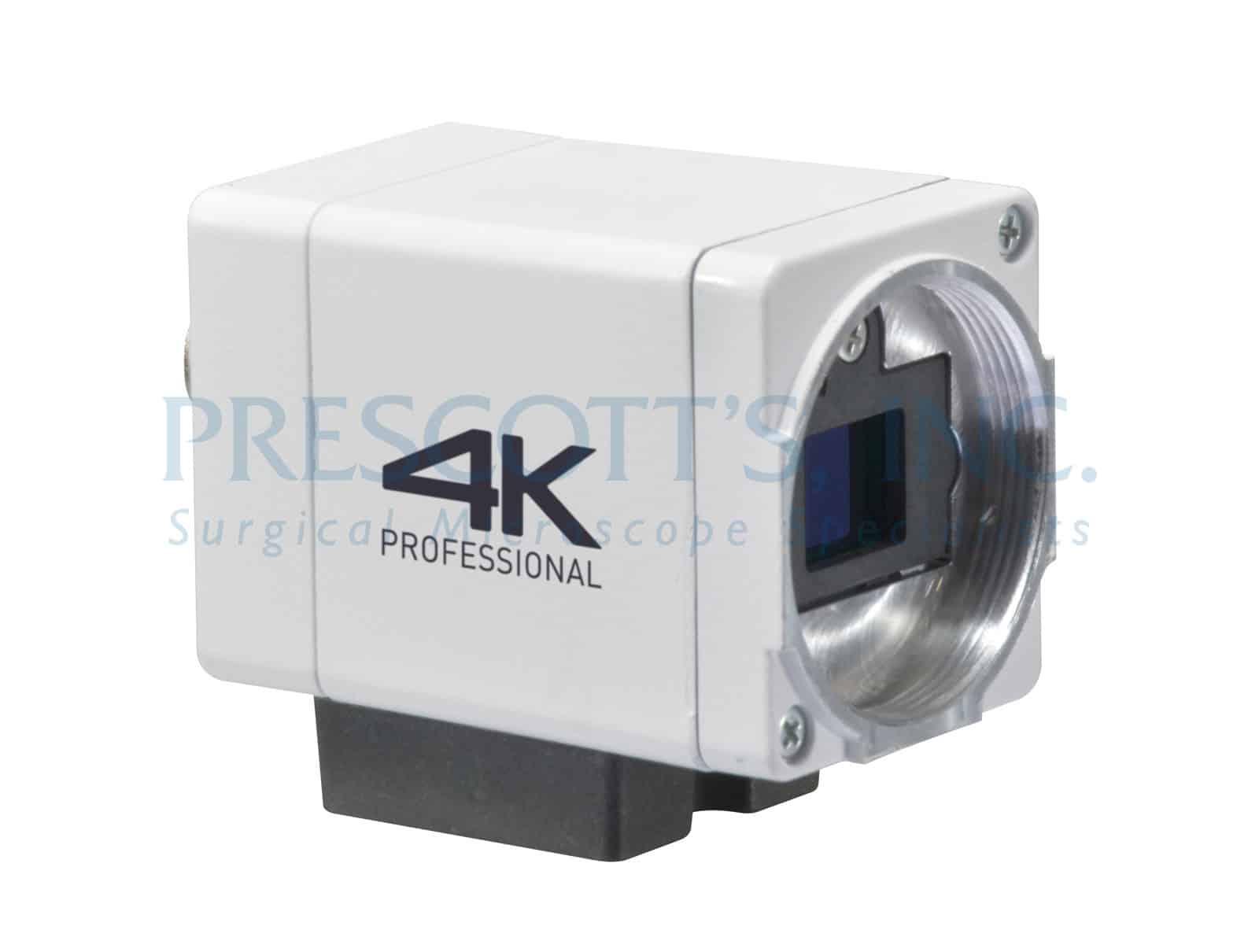

• Dimensions (Camera Head): 27 mm (W) x 30 mm (H) x 42.5 mm (D).
• Weight (Camera Head): Approx. 65 g.
• Power Supply: 12 V DC ± 10%.

Clinical Applications

The GP-UH532 is pre-configured with profiles to support a wide range of surgical disciplines:

• Ophthalmology: Optimized profiles for Anterior (Cataract) and Posterior (Retina) surgeries.
• Neurology: dedicated profile for neurological procedures.
• ENT: Specific settings for Ear, Nose, and Throat surgeries.
• Fluorescence Imaging: Specialized modes for fluorescence-guided interventions.

Why Choose the Panasonic GP-UH532?

The Panasonic GP-UH532 offers a “future-proof” solution for surgical imaging. Its ability to simultaneously output 4K and Full HD ensures seamless integration into current operating rooms while providing the ultra-high definition capability needed for advanced documentation and education. With its robust 12-axis color adjustment and ease of operation designed specifically for medical professionals, it provides the certainty and visibility surgeons demand.

Prescott’s Surgical Microscopes Support and Service

Prescott’s offers the Panasonic GP-UH532 new with a full one-year warranty. Our team ensures seamless compatibility with major microscope brands, including Zeiss, Leica, Alcon, Haag-Streit, and Moller-Wedel. Contact Prescott’s Surgical Microscopes today for a quote or to discuss integration with your current system.
