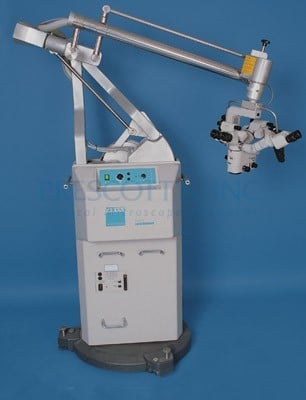

Zeiss OPMI CS NC-2 Microscope

The Zeiss OPMI CS NC-2 is widely regarded as one of the most balanced and stable surgical microscope packages ever assembled by the Zeiss design team. Specifically engineered for spinal and neurological applications, this system features the legendary Contraves floor stand, which provides maximum horizontal reach and effortless, free-floating maneuverability. With its integrated face-to-face optics and dual independent zoom and focus systems, the NC-2 is an ideal solution for complex spine procedures and start-up outpatient neurosurgical suites.

Key Features and Benefits

• Maximum Reach and Stability: Mounted on the Contraves floor stand, the system offers an impressive 69-inch horizontal reach and free-floating movement that can be easily locked into place.
• Zeiss Varioskop Technology: Features an integrated Varioskop objective lens, providing a motorized, variable working distance from 200mm to 400mm without the need to change lenses.
• Superlux 300W Xenon Illumination: Equipped with a high-intensity 300W Xenon light source and a reliable 100W Halogen backup, ensuring daylight-quality brightness for deep surgical cavities.
• Face-to-Face Optics: Includes two independent 0-180° inclinable binoculars, allowing the surgeon and assistant to work directly across from each other with identical high-resolution views.
• Handlebar Controls: Ergonomically designed handlebars give the surgeon direct, motorized control over zoom, micro-fine focus, and electromagnetic brake release.
• Side Assistant Capability: Comes standard with a dedicated side assistant’s scope with 10x widefield eyepieces, perfect for teaching and multi-clinician procedures.

Specifications

• Working Distance: Motorized Varioskop ranging from 200 mm to 400 mm.
• Magnification: High-resolution motorized zoom controlled via handlebars.
• Binoculars: Two 0-180° inclinable tubes; face-to-face bridge included.
• Eyepieces: 10x widefield (55 mm – 75 mm pupillary distance).
• Light Source: Superlux 300W Xenon with Halogen backup.
• Horizontal Reach: 62-inch arm reach; 69 inches to the end of the optics.
• Vertical Range: 75-inch macro focus range.
• Mounting System: NC-2 Contraves floor stand (optional automatic leveling available).
• Weight: Approximately 600 lbs (shipping weight).

Prescott’s Support and Service

Prescott’s Surgical Microscopes provides the Zeiss OPMI CS NC-2 fully refurbished, tested, and calibrated to ensure peak performance in the OR. We are committed to protecting your investment with 24/7 technical support, dedicated field service, and flexible rental or purchase options. Contact Prescott’s Surgical Microscopes today for a professional quote or to learn more about our neurosurgical and spinal imaging systems.
